Chain & Cable Protector Set
Chain & Cable Protector Set
Our bike chain & cable protector set offers some base level protection against chain bite and cable rubbing. This is our entry level protection product, shielding your frame from the most common forms of damage. Made from automotive grade protection film available in a range of thicknesses.
Dimensions
Dimensions

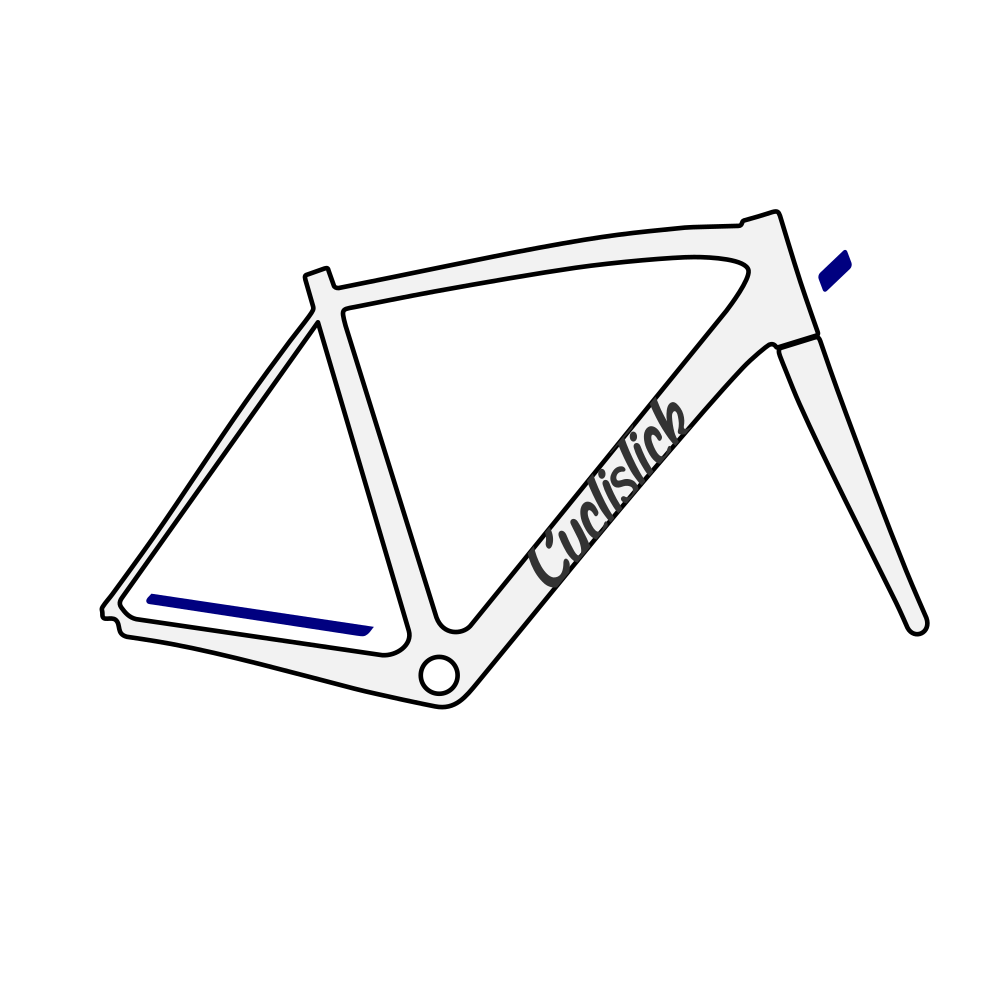

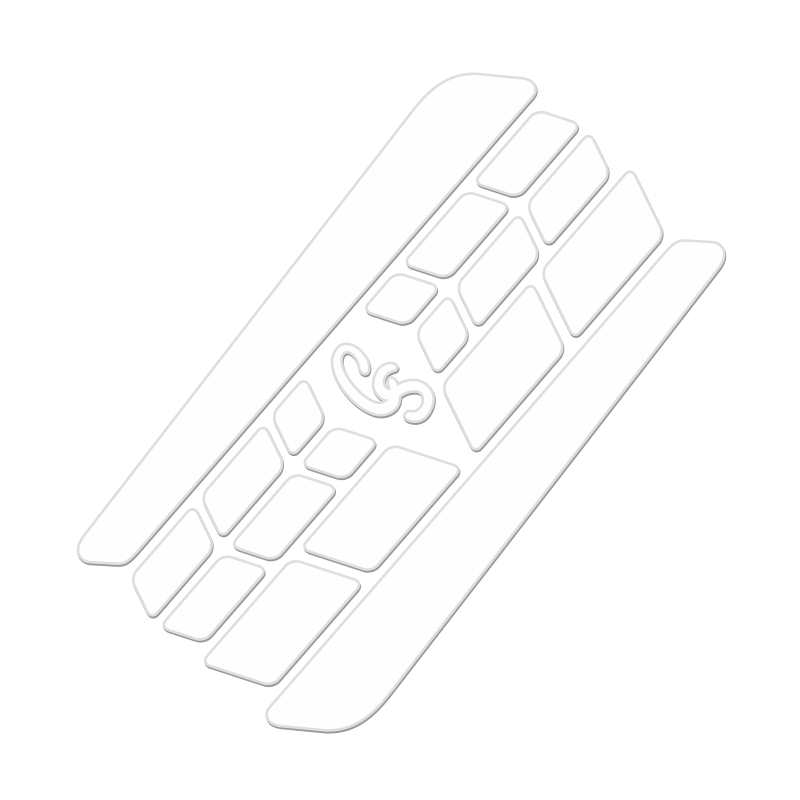

2x Chain Stay Protectors:
220mm x 28mm (narrows to 18mm)

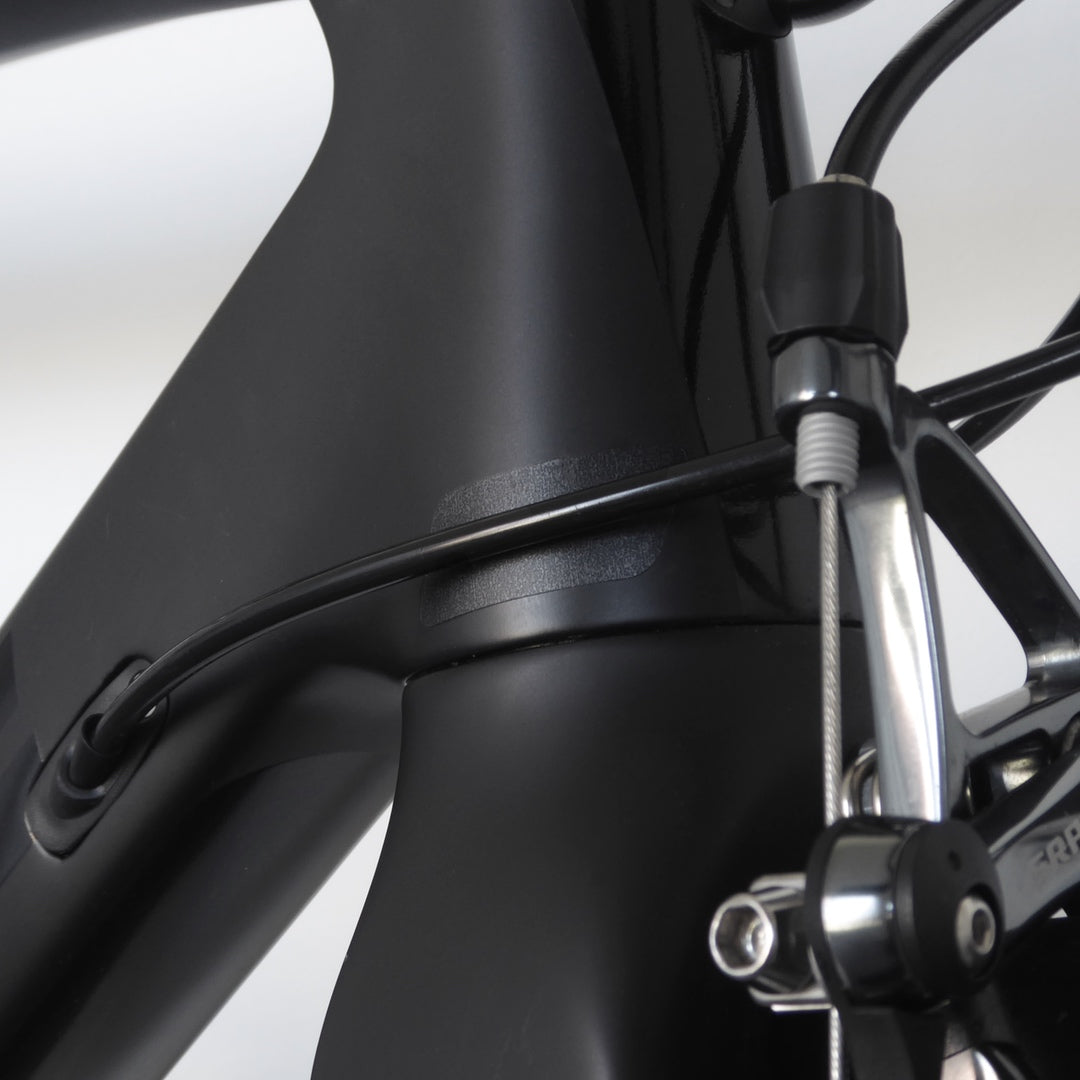

Cable Protectors:
4x 54mm x 22mm
8x 36mm x 14mm
4x 20mm x 14mm
Materials
Materials
Gloss Clear - 150 micron
Matt Clear - 120 micron
Carbon Effect - 150 micron
Application
Application
Frame Protection Film
Crank Protector Application
Slip solution is 1 drop Baby Shampoo/Washing Up Liquid to 500ml water
Dry Application
- Ensure component is at room temperature (avoid installation below 12°C/53 F)
- Clean surface using alcohol based cleaner*
- Lay protector onto frame/crank (wet finger tips to avoid print transfer)
- Contour using light pressure - use heat if required
- Heat vinyl to activate adhesive*
- Allow to cure for 1 hour
________________________________________________
Decal/Sticker Application
________________________________________________
Iron-On Reflective
- Peel away excess material revealing the strips
- Cut out required strip
- Place onto t-shirt with the smooth, shiny backing plastic facing upwards
- Place a paper tower or teflon sheet on top of the strip (DO NOT iron directly onto the backing plastic)
- Press for 15 seconds at 150°C (Medium)
- Allow to cool before peeling away backing plastic
Aftercare: Max 60 wash | Tumble Dry Safe | Do Not Dry Clean
_______________________________________________
Removal
⚠️ All our adhesive products require the underlying surface be undamaged, the application and removal are at the judgement and risk of the installer - info@cyclistick.co.uk if you are in any doubt.
*Use a heat gun or hairdryer, avoiding direct contact or prolonged exposure.
