Core Protection Set - Road

Core Protection Set - Road

Regular price $21.00 USD
Regular price Sale price $21.00 USD
-Liquid error (snippets/price line 86): divided by 0% OFF Sold out
Tax included. Shipping calculated at checkout.
Material

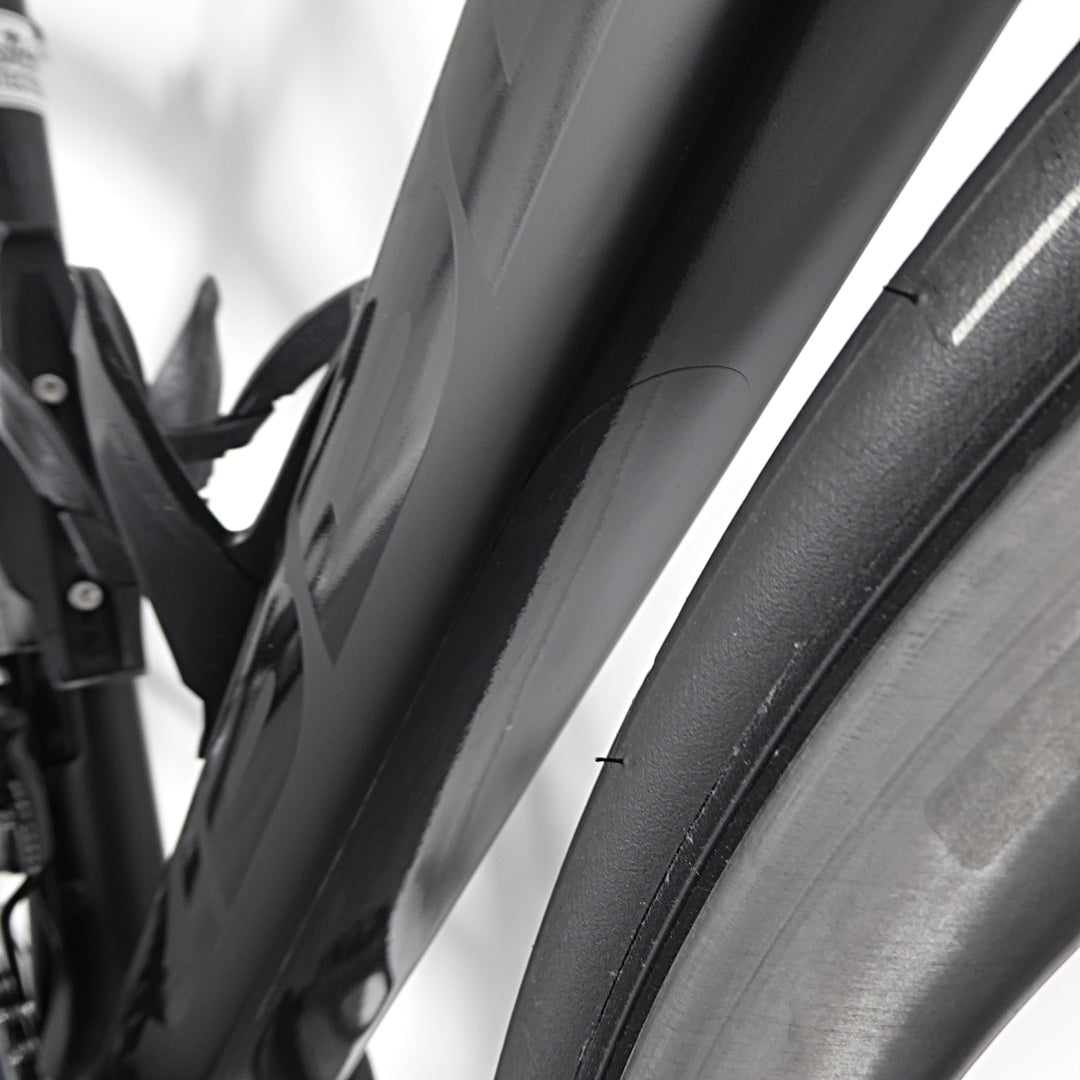

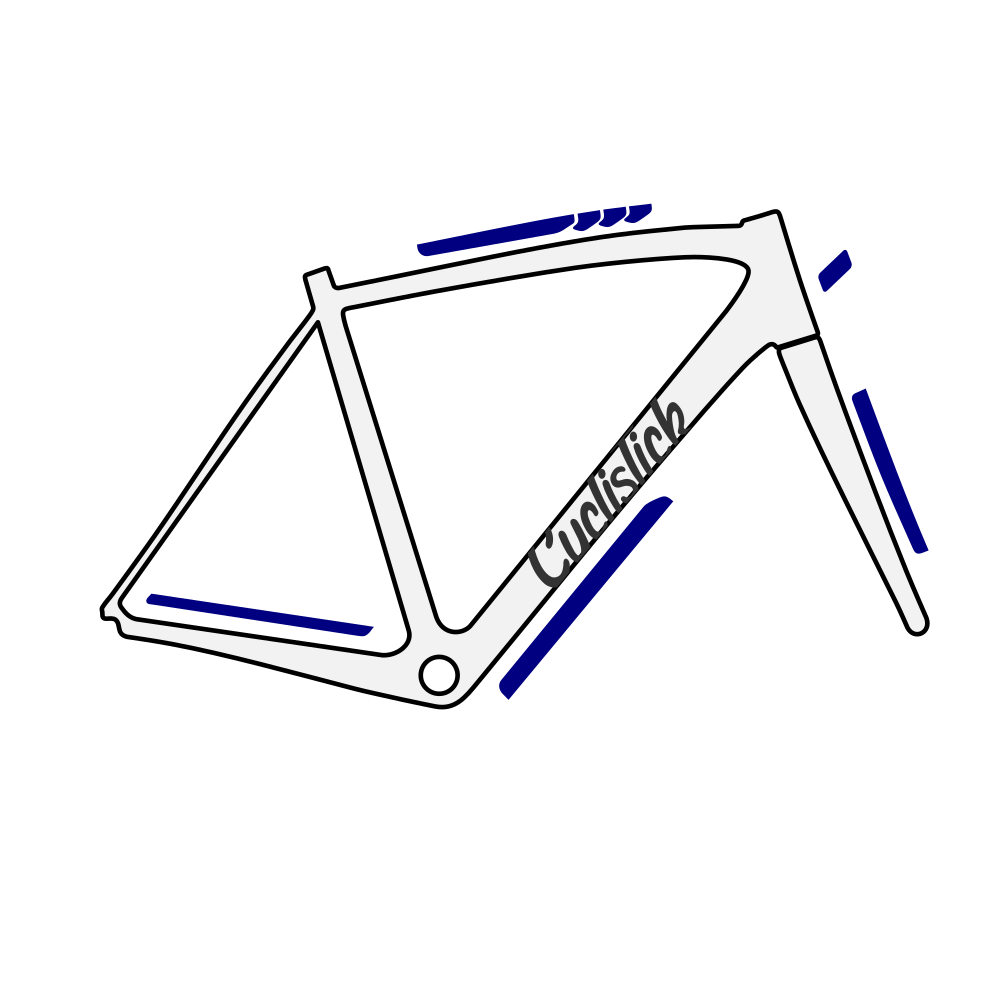

Our road bike frame protection set is designed to suit the geometry of Road and City bikes. Made from automotive grade protection film, this set offers coverage for the most vulnerable areas.

Help protect your pride and joy by preventing unwanted scuffs and scratches.

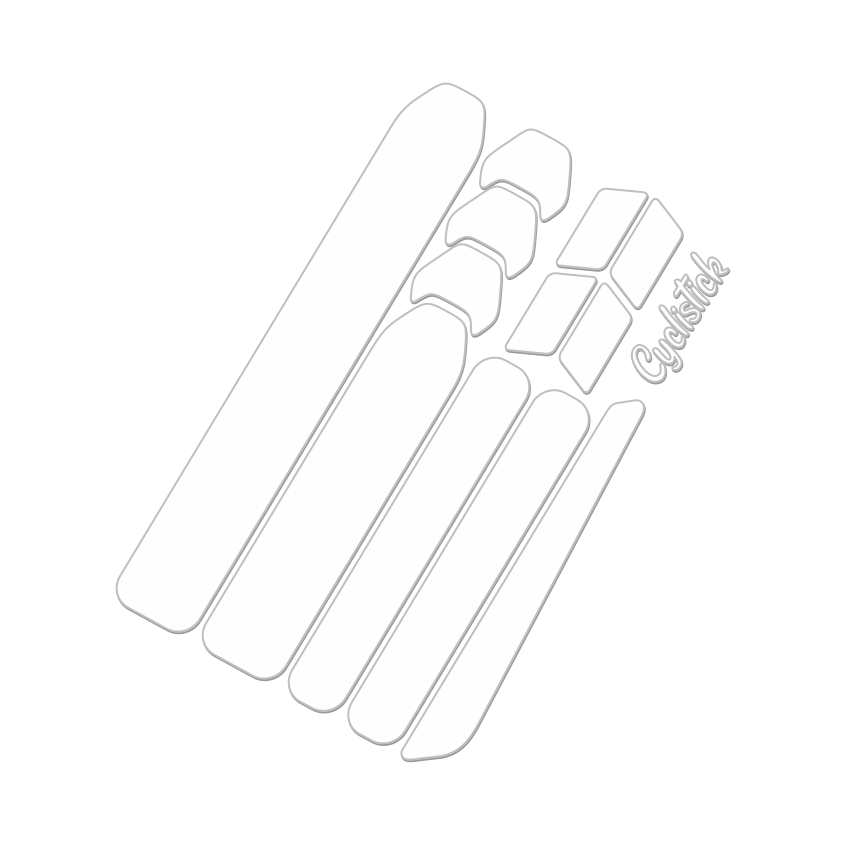

Dimensions

1x: Downtube - 318mm x 48mm
1x: Modular Top Tube - 213mm x 48mm
3x: Extension Modules - 40mm x 48mm
2x: Fork Front Edge - 205mm x 32mm
4x: Large Patch - 54mm x 24mm
1x Chainstay - 220mm x 28mm (narrows to 18mm)

Materials

Gloss Clear - 150 micron
Matt Clear - 120 micron
Carbon Effect - 150 micron

Application

Frame Protection Film

Crank Protector Application

Slip solution is 1 drop Baby Shampoo/Washing Up Liquid to 500ml water

Dry Application

  1. Ensure component is at room temperature (avoid installation below 12°C/53 F)
  2. Clean surface using alcohol based cleaner*
  3. Lay protector onto frame/crank (wet finger tips to avoid print transfer)
  4. Contour using light pressure - use heat if required
  5. Heat vinyl to activate adhesive**
  6. Allow to cure for 1 hour

________________________________________________

Decal/Sticker Application

________________________________________________

Iron-On Reflective

  1. Peel away excess material revealing the strips
  2. Cut out required strip
  3. Place onto t-shirt with the smooth, shiny backing plastic facing upwards
  4. Place a paper tower or teflon sheet on top of the strip (DO NOT iron directly onto the backing plastic)
  5. Press for 15 seconds at 150°C (Medium)
  6. Allow to cool before peeling away backing plastic

Aftercare: Max 60 wash | Tumble Dry Safe | Do Not Dry Clean

_______________________________________________

Removal

*All our products are made from automotive grade film which requires the surface to be undamaged, the application and removal are at the judgement and risk of the installer. - info@cyclistick.co.uk if you are in any doubt.

**Use a heat gun or hairdryer, avoiding direct contact or prolonged exposure.
